| Indeks | Materiał | Uszczelka | Maks. ciśnienie | Rozstaw kłów | Waga |
| STORZREDAL066033 | Aluminium | NBR | 16 bar | 66 x 31 mm | 310 g |
| STORZREDAL066044 | Aluminium | NBR | 16 bar | 66 x 44 mm | 620 g |
| STORZREDAL066051 | Aluminium | NBR | 16 bar | 66 x 51 mm | 600 g |
| STORZREDAL081051 | Aluminium | NBR | 16 bar | 81 x 51 mm | 640 g |
| STORZREDAL081066 | Aluminium | NBR | 16 bar | 81 x 66 mm | 790 g |
| STORZREDAL089066 | Aluminium | NBR | 16 bar | 89 x 66 mm | 600 g |
| STORZREDAL089081 | Aluminium | NBR | 16 bar | 89 x 81 mm | 970 g |
| STORZREDAL105089 | Aluminium | NBR | 16 bar | 105 x 89 mm | 1110 g |
| STORZREDAL115081 | Aluminium | NBR | 16 bar | 115 x 81 mm | 1270 g |
| STORZREDAL115089 | Aluminium | NBR | 16 bar | 115 x 89 mm | 1030 g |
| STORZREDAL133081 | Aluminium | NBR | 16 bar | 133 x 81 mm | 1930 g |
| STORZREDAL133115 | Aluminium | NBR | 16 bar | 133 x 115 mm | 2160 g |
| STORZREDAL148133 | Aluminium | NBR | 16 bar | 148 x 133 mm | 2880 g |
| STORZREDAL160115 | Aluminium | NBR | 16 bar | 160 x 115 mm | 3450 g |
| STORZREDAL160133 | Aluminium | NBR | 16 bar | 160 x 133 mm | 3730 g |

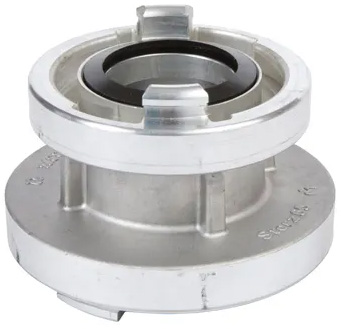

Złącze STORZ REDUKCJA AL
Zakres cen: od 217,50 zł do 2051,00 zł
Reduktor STORZ. Do zastosowań ciężkich.
| Typ złącza | Złącza STORZ |
|---|---|
| Ciśnienie robocze | 16 bar |
